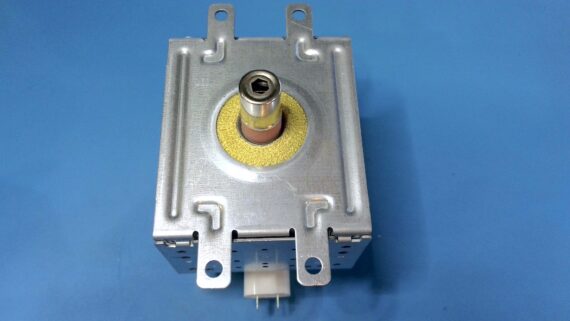

MICROWAVE MAGNETRON (2M210 ) SAMSUNG MICROWAVE OVEN MAGNETRON OM75S(10) OM75S (31) OM75P(31) ESGN

Description ELECTRICAL CHARACTERISTICS Test condition Limits TERM Vf(V) Va(kV) Ia(mA) VSWR Min. Mean Max. Unit Cold Insulation Resistance 0 1kV dc 50M.2 ∞ Breakdown Voltage 0 10dc Cold Start (Volt transient) 3.3 300 ≤1.1 8 KV Frequency 3.3 300 ≤1.1 2,455 2,465 2,475 MHz Peak Anode Voltage 3.3 300 ≤1.1 4.0 4.1 4.3 kV Efficiency 3.3 300 ≤1.1 71 % Mean Output Power 3.3 4.1 300 ≤1.1  960 W Emission Stability (Vfm) 300 ≤1.1 2.3 V Stability 3.3 4 VSWR Pulling Figure 3.3 300 1.3 10 MHz Filament Current 3.3 9 11 13 A Sink Phase (at L=4) 3.3 300 4 0.26 0.28 0.30
